Processors in a range of industries rely on tubular drag cable conveyors to move sensitive materials and powders, making it important to properly design, install and proactively maintain these systems to minimize production downtime and maximize longevity.

In today’s fast-paced processing environment, it is a standard practice to run conveyors until something breaks or needs to be repaired, which can lead to significant unnecessary downtime.

“Processors traditionally have relied on third parties such as local millwrights to install and maintain conveyors,” says Fernando Mejia, director of product life cycle management & aftermarket for Automated Handling Solutions (AHS). “These third parties may not have access to technical specifications or have not had the opportunity to read the manual and can therefore be unaware of system acceptable specifications and best practices. This can result in not only excessive downtime and maintenance, but also costly repairs and even premature system replacement.”

AHS combines the strengths of Cablevey Conveyors and Spiroflow to provide customers with a specialized handling and automation product portfolio for mission-critical applications.

Instead of reacting to individual problems as they arise, a more effective approach is to implement total preventative maintenance (TPM) for conveyors. This involves ongoing service and engineering support, resulting in reduced downtime and lower operations and maintenance (O&M) costs.

“We are here to assist customers reducing their total O&M costs,” Mejia says. “We are looking forward to partnering with our customers to inspect their systems, review layouts and formulate a total preventative maintenance plan based on their needs. Failing in this, customers may continue to replace parts prematurely with all the needless downtime this involves.”

According to Mejia, the goal of a TPM program is to work with customers to maximize the output of their conveyors and extend the lifespan of their critical capital equipment.

The value of prevention

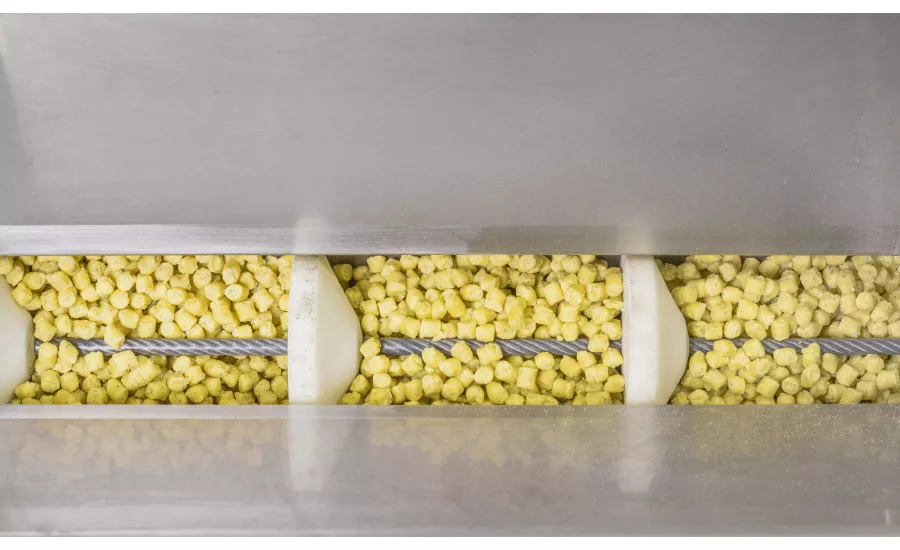

With the sophistication of state-of-the-art conveyors, proactive, preventative and predictive maintenance is an effective strategy. This is the case with tubular drag cable conveyors, which gently move product through a sealed tube using a coated, flexible stainless-steel drag cable pulled through on a loop. Solid circular discs (flights) are attached to the cable, which propel the product through the tube without the use of air.

While it is possible to utilize third parties to install the systems and in-house maintenance teams to maintain them, there are considerable advantages to involving an OEM supervisor, since they possess unparalleled training and expertise on the system.

OEM technicians typically have years of experience exclusively servicing and troubleshooting tubular drag style conveyors. Technicians have conducted hundreds of inspections in plants worldwide that run any material imaginable, from powders and blends to bird seed, pet food, cereals, coffee beans, nuts and more.

“Many recurring problems stem from incorrect installation, which can involve improperly positioning the conveyor’s hangers, excessive tension, misaligning tubing, leaving gaps or insufficient supports, Mejia says. “All these defects can generate friction, noise and prematurely wear parts, requiring replacement.”

An OEM can also proactively recommend appropriate spare parts kits or high-wear parts such as cables, connectors or sweeps that are known to have shorter lifecycles. This method encompasses assessing both the condition and usage of the conveyor, while also leveraging predictive data to efficiently resolve numerous issues before any downtime occurs.

“As the OEM, we can analyze system usage as well as component wear and lifecycle data to accurately predict when vital parts will likely need to be replaced and have them replaced before something breaks,” Mejia says. “The more a processor adheres to this type of total preventative maintenance schedule, the more likely the conveyors will provide optimal service throughout their anticipated lifespan.”

A comprehensive annual inspection of the conveyor system by the OEM is highly recommended. With a shortage of skilled mechanics, combined with high employee turnover, the OEM can perform in-depth inspections and recommended maintenance. This solution is mainly targeted to processors that have one or multiple tubular drag conveyors running constantly throughout the year.

According to Mejia, detecting problems such as gaps or misalignments requires camera inspection. The annual inspection also assesses the conveyor’s tubes, walls, sweeps, connectors, input and output. In addition, cables should be checked for integrity and tension, discs and sprockets for wear, and joints should be validated.

During the inspection process, the OEM can recalibrate or replace any components outside of system specifications. In the case of AHS, service technicians also advise on the use of any available update or retrofit kits that can further facilitate increased output.

While the frequency of the annual service visits depends on the system application and environment conditions, several factors can help determine the optimal frequency. As a partial list, this can include the type of conveyor systems in the facility, system length and complexity, average daily use, environment conditions and the type of material conveyed. When these factors are analyzed, a service visit might be scheduled once or twice per year, as the situation warrants.

Many processors can benefit from collaborating with a conveyor OEM to establish a comprehensive preventative maintenance plan. For instance, Mejia highlights the case of a coffee processor that aimed to revamp its maintenance strategy.

This customer had expanded operations and was about to double its capacity. Although the processor’s conveyors were running well, it didn’t want to risk unnecessary downtime. “So, they told us, ‘We would like to avoid the ‘break/fix’ approach and move forward to a total preventative maintenance culture,’” Mejia says. “I was thrilled to hear that our goal and vision were aligned.”
