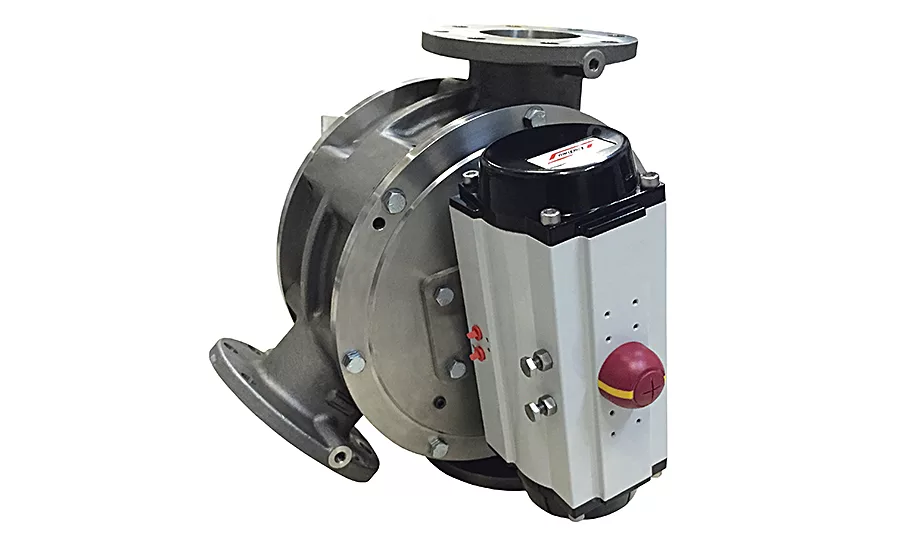

The Schenck Process PT45 diverter valve features 45° port-to-port rotation; a 2-way switching capability for dilute phase or dense phase conveying applications; a cast iron or aluminum housing, tunnel and end plates; a 316 stainless steel actuator and arm assembly; and inlet and outlet ports flanged to mate 150# ANSI flange patterns. A 4-way, double solenoid air control valve with a NEMA 4 enclosure and a NEMA 4/4X position proof switch with 2 DPDT switch elements are included.

Schenck Process; www.schenckprocess.com
