Technology Sourcebook

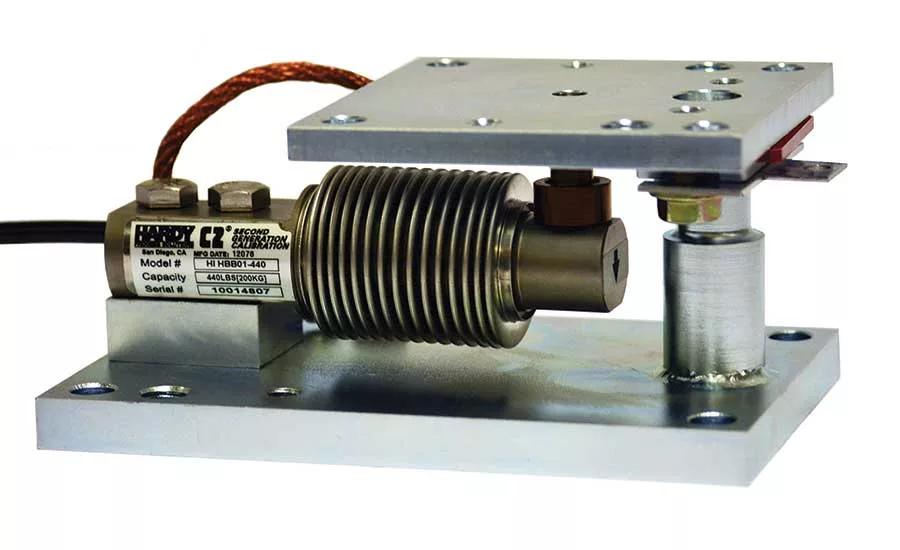

Hardy OneMount load cell

Designed for small hoppers, tank weighing systems and bagging machines, the Hardy OneMount load cell with beam sensors also is suitable for other dynamic, low-capacity applications, such as checkweighing and conveyor scales; the glass-to-metal hermetically sealed sensors provide IP68/IP69K-rated washdown protection, have a capacity of 22 to 550 lb. and an error rating of 0.02%. The 360° checking mechanism allows load points to be installed in any direction, while the self-centering rocker returns the weighing system to proper alignment after experiencing shear forces.
Hardy Process Solutions, Inc.; www.hardysolutions.com
